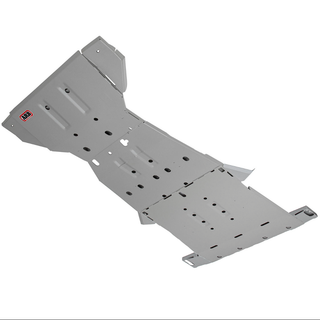

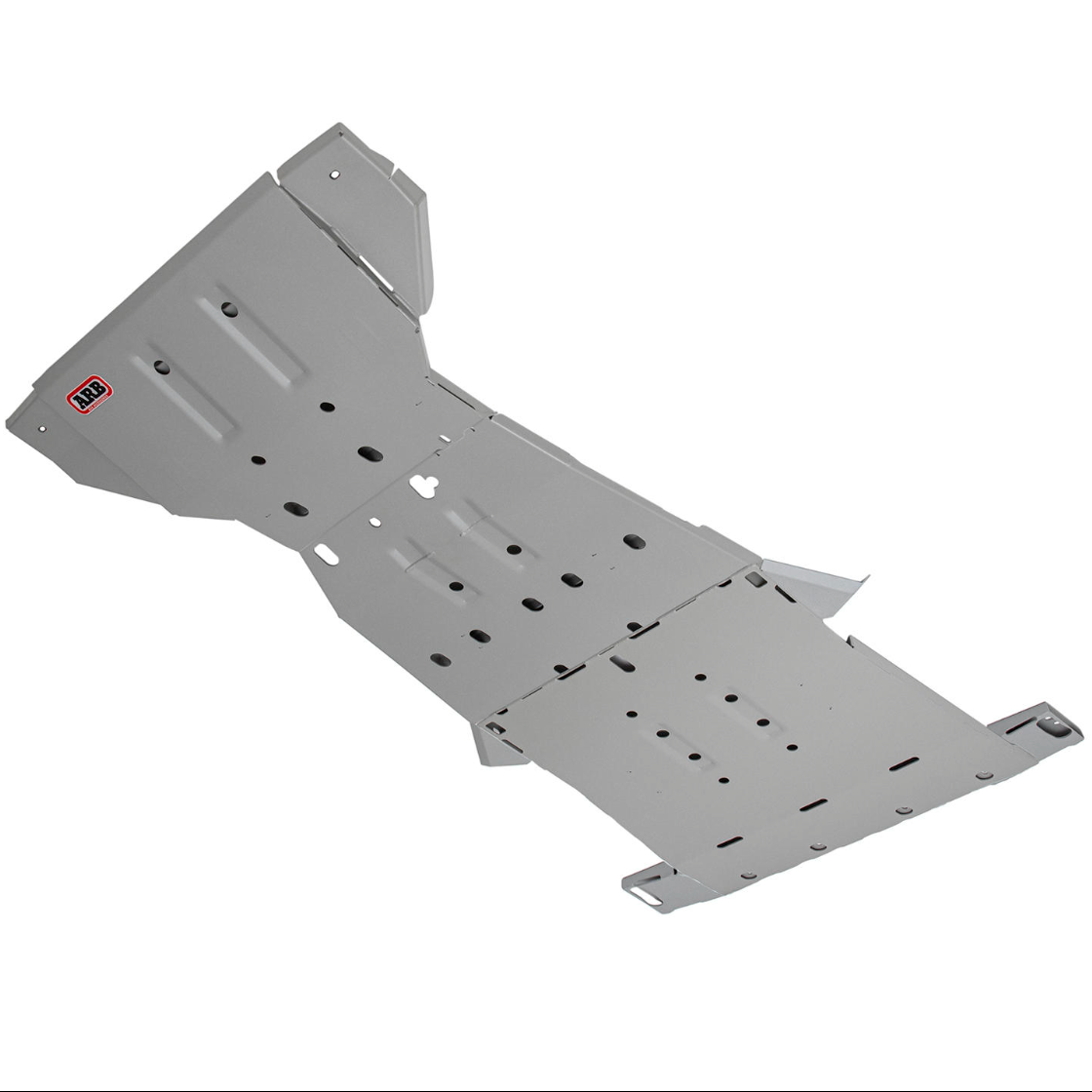

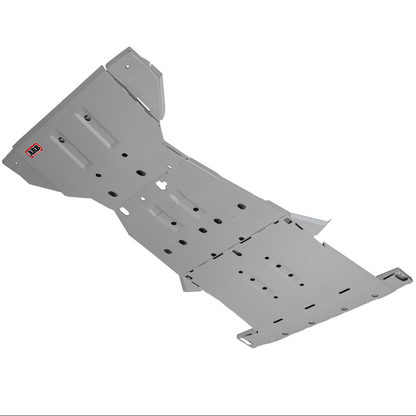

Kit Skid Plate ARB4x4 Lowers - Ford Ranger 23+/ VW Amarok 23+ | 3mm Steel

ARB4x4 Complete Underbody Protection - Ford Ranger / Amarok 2023+ | Protect the essentials of your 4x4 with ARB

• Assembly Instructions - Installation Guide.PDF (Click Here)

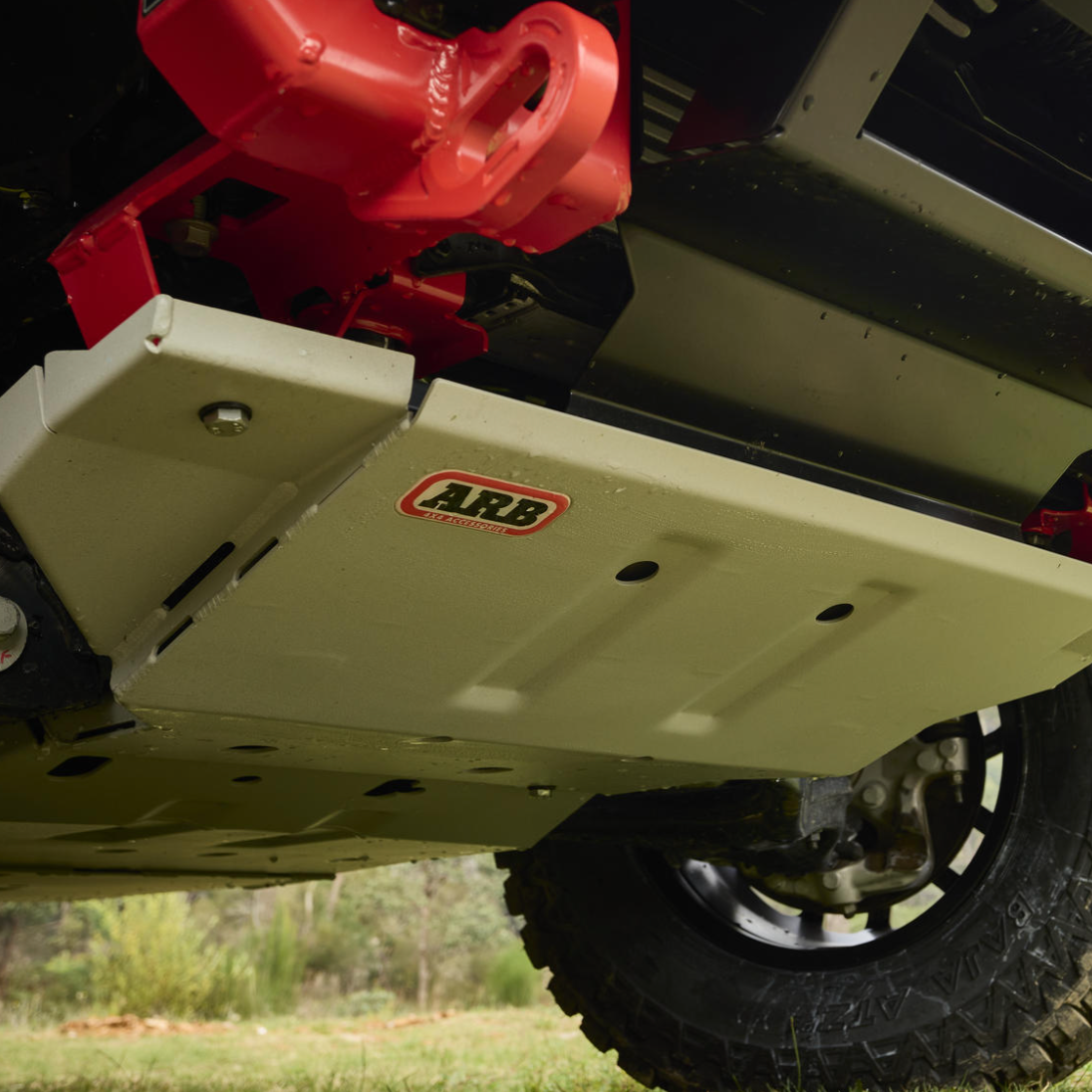

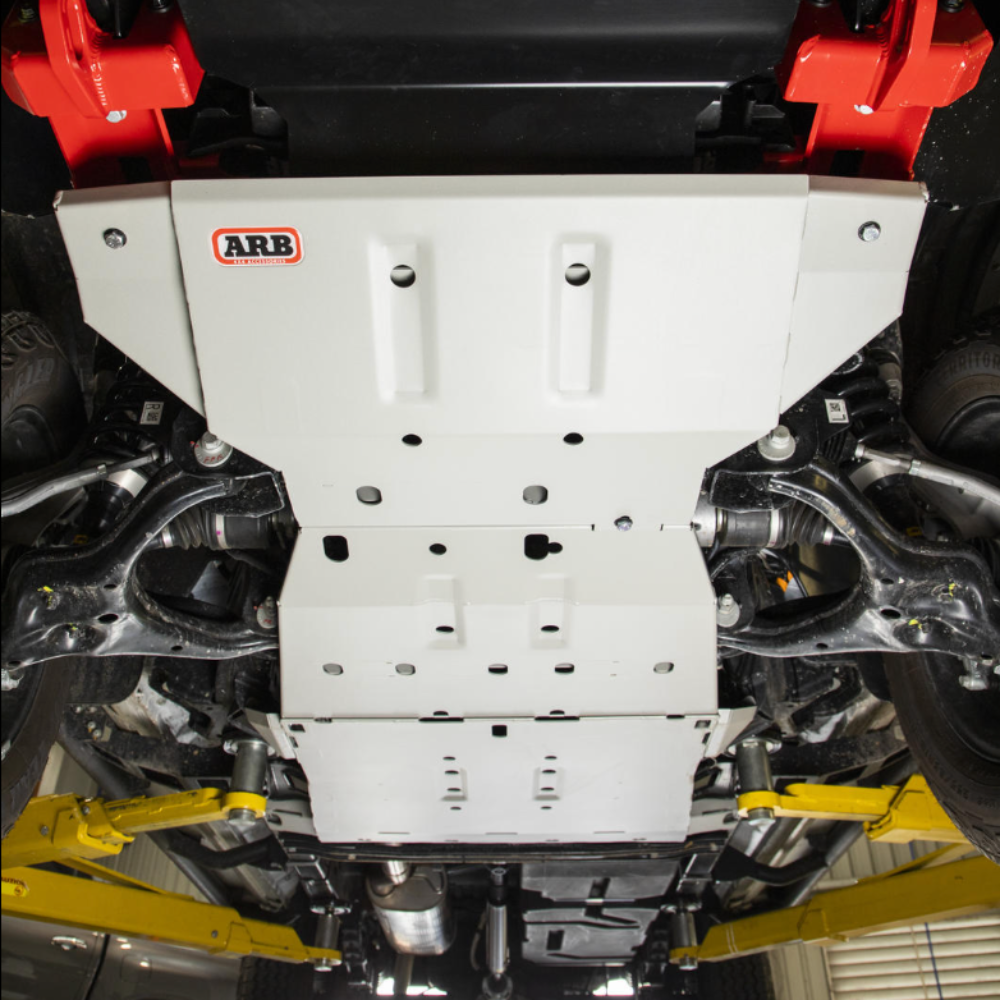

Designed for the most extreme terrain, the kit Skid Plate ARB 3mm steel lower shock absorbers are the ideal ally for demanding off-road enthusiasts. Custom-made for the Ford Ranger and VW Amarok 2023+, this Skid Plate protects vital components: engine, steering, transmission, transfer case.

A robust & intelligent conception

Each panel is laser cut, pressed, and bent for maximum rigidity. This modular system includes:

• A front panel: protects the steering, the stabilizer bar and the engine
• A central panel: protects the crankcase and the front differential
• A rear panel: protects the transmission and transfer case
• A rear cross member dedicated to the transfer case

These plates are zinc-plated and painted with a silver, anti-corrosion textured finish. They attach directly to the frame for optimal strength.

Easy assembly & easy maintenance

Ready-to-install kit (estimated time: 60 min)
Easy access to drain points
Recessed bolts to prevent snagging
Compatible with ARB recovery points ref. 2840060 & 2840070
Compatible with or without ARB front bumper

Key technical features:

• Material: 3 mm stamped steel, zinc-plated finish + textured paint
• Total weight: approx. 54 kg (distributed between the panels)
• Maintenance recommended at each service
• Warranty: 3 years ARB

Vehicle Compatibility

• Ford Ranger (2022 to present, all versions) XL, XLS, XLT, Sport, Wildtrak, Platinum, Tremor…)
• VW Amarok (2023 to present, versions TDI405, TDI500, TDI600, TSI452…)

See the assembly instructions for more details.

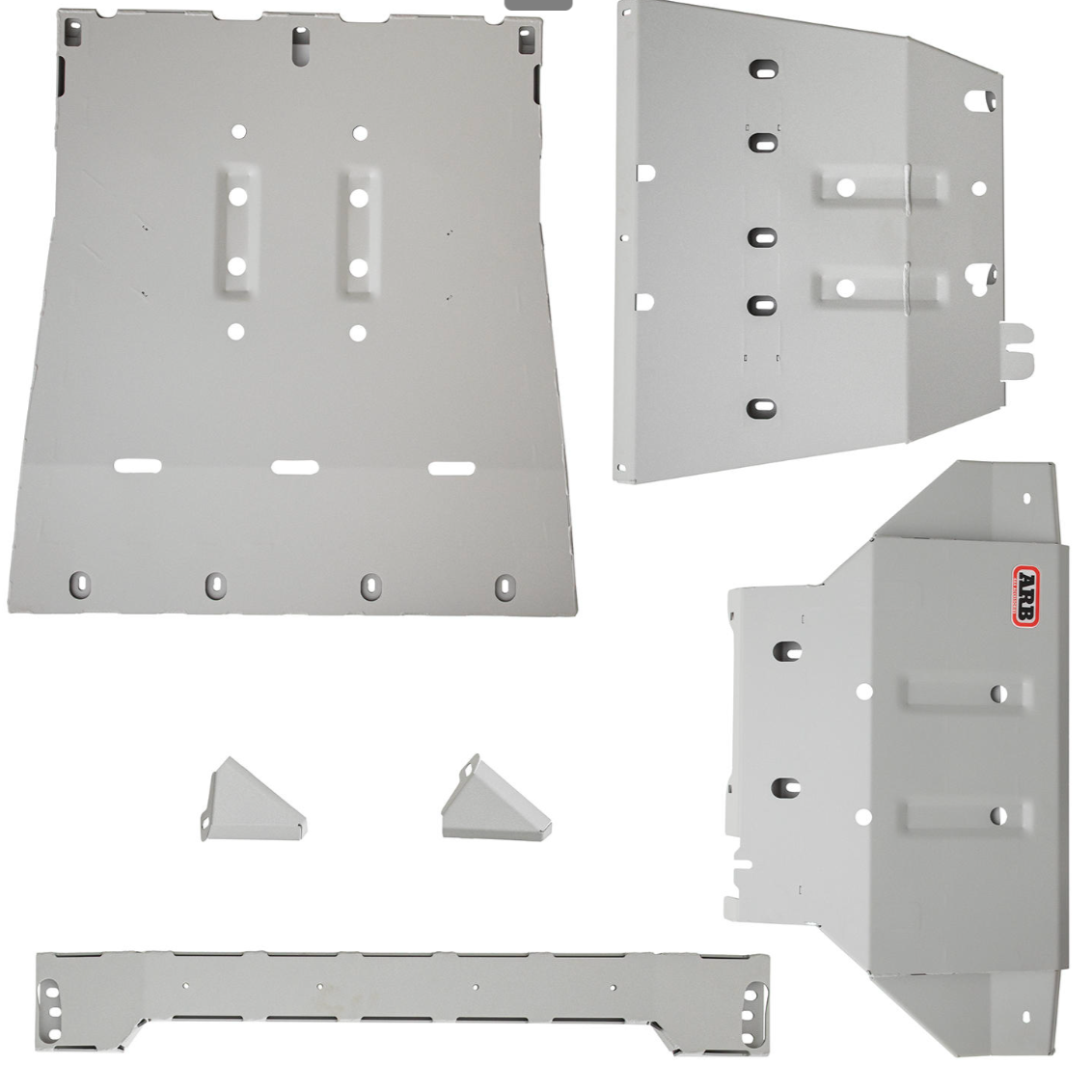

Kit Contents

• 1x Steering and engine protection plate (≈12 kg)
• 1x Housing / Differential plate (≈12 kg)
• 1x Plaque transmission (≈22 kg)
• 1x Transfer case mounting cross member (≈8 kg)
• All screws + illustrated assembly instructions

FAQ - Everything you need to know before youBuy

This Skid Plate Is it compatible with other bumpers than ARB?

Compatibility has only been tested with ARB bumpers. For other brands, adjustment may be required.

Does the installation require any modifications to the vehicle?

No cutting or welding: the kit bolts directly to the original chassis points.

Does this make my vehicle much heavier?

The complete kit weighs approximately 54 kg. This extra weight is minimal compared to the protection provided on the track.

Can I do the oil change without removing the plates?

The plates are easily removable thanks to their recessed bolts. Removal is even recommended for inspection and cleaning at each service.

And what about rust?

Each element is zinc-plated and painted, guaranteeing maximum resistance against corrosion, even in mud or snow.
