Interface CAN Lazer Lamps Canny (Direct Connect) | 4 Sorties

The Smart Solution for Your Additional Lights on Modern Vehicles

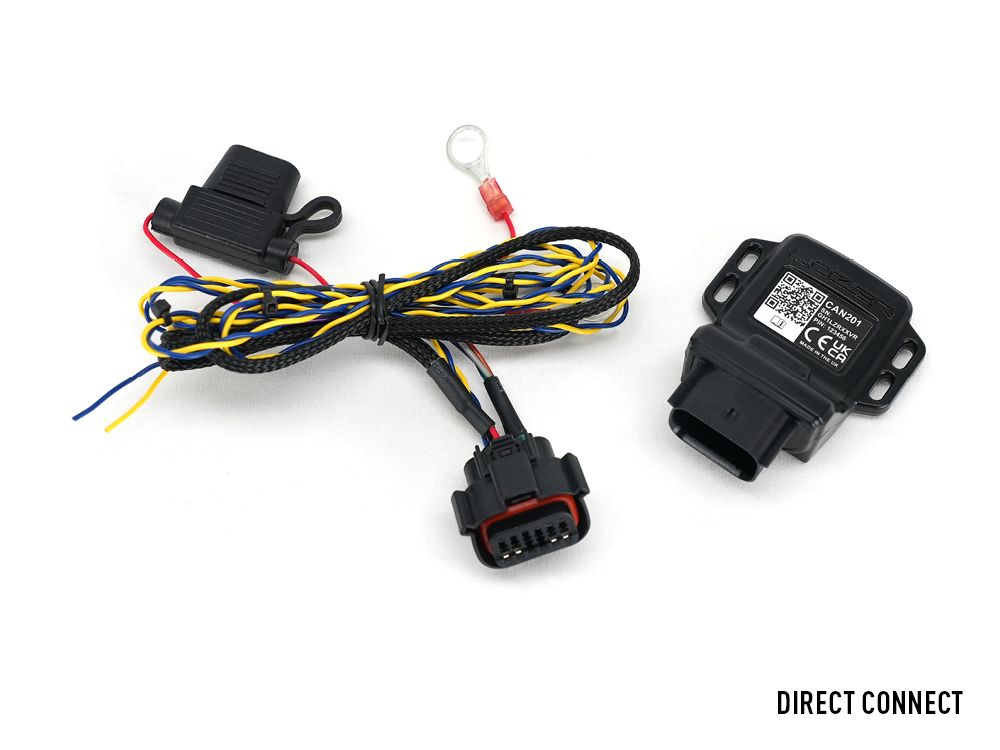

Installing LED headlights on modern vehicles has become complex. Modern electrical systems often no longer allow tapping into a standard 12V signal at the headlights. The interface CANNY Laser LampsThis solves the problem permanently. This smart device intercepts vehicle signals via the CAN bus system. It allows you to activate your LED light bars or auxiliary lights in perfect synchronization with the original controls. This model Direct Connect comes with the necessary wiring harness for a reliable and waterproof wired connection.

Rugged and Waterproof Technology for Adventure

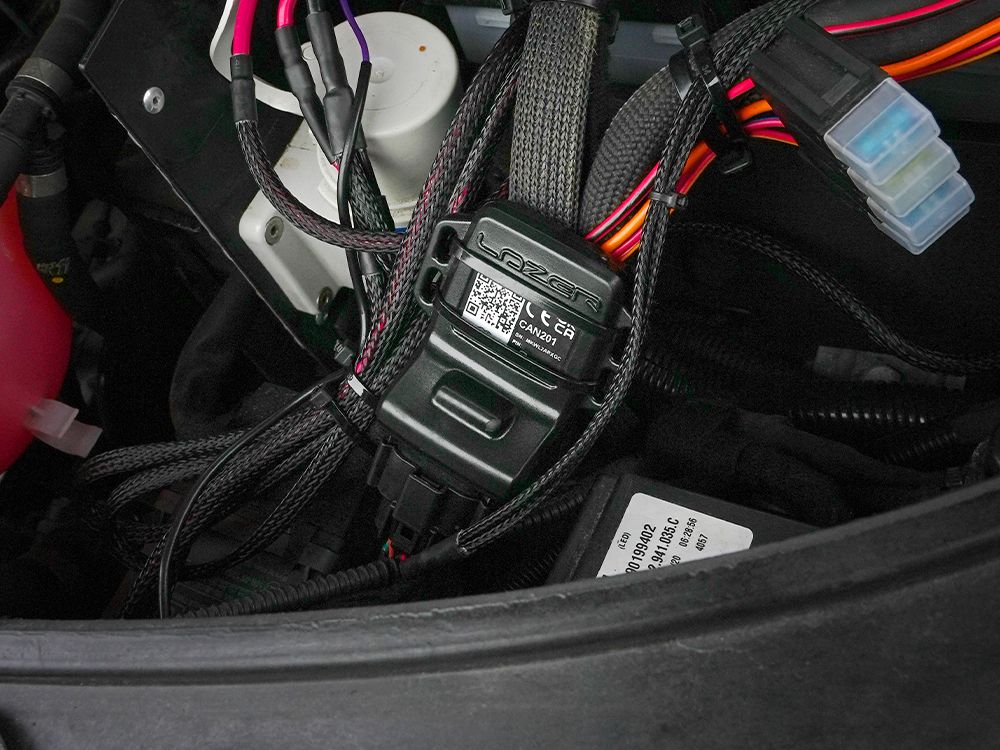

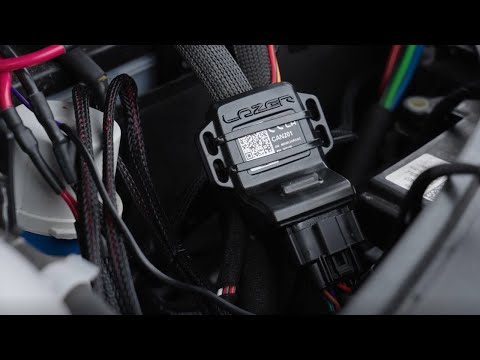

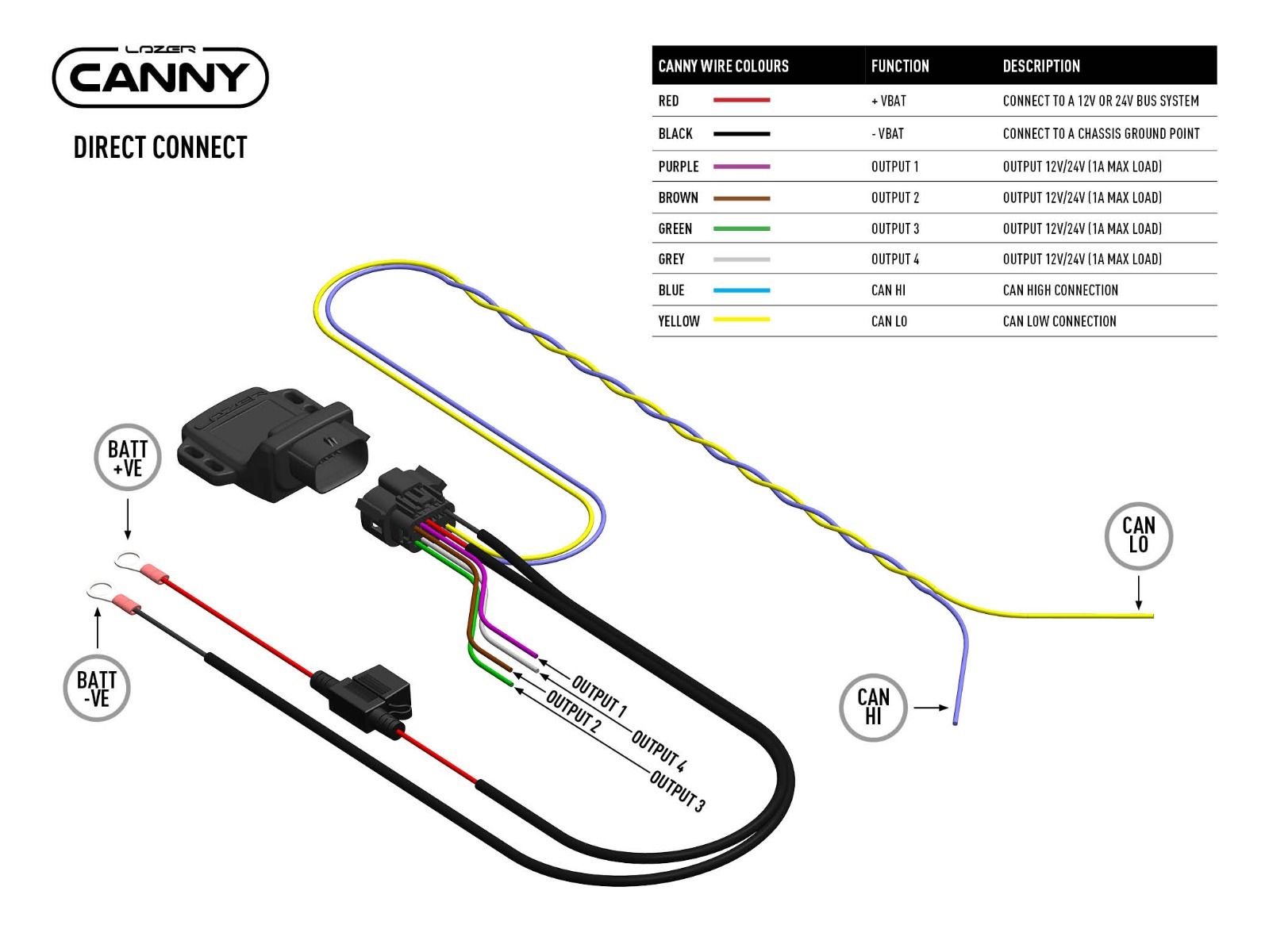

The CANNY case is designed to withstand harsh environments. He has a certification IP68guaranteeing total water and dust resistance. You can therefore install it directly in the engine bay for faster installation. The automotive-grade Molex connector ensures a secure and durable connection. The supplied cables (blue for CAN Hi and yellow for CAN Lo) are equipped with heat-shrink connectors. This guarantees a perfect, moisture-resistant connection, even in demanding off-road conditions.

Total control via app and Bluetooth updates

The CANNY interface is not a simple relay, it is a connected tool. Thanks to the dedicated application CANNY.LZR(available on Android and iOS), you remain in control. The app allows you to configure the device and test the lighting functions. Updates are done via Bluetooth (Over-the-air). If a manufacturer changes its CAN protocols, your unit can be updated instantly via your phone. No need to dismantle the installation to reprogram the module.

4 Programmable Outputs for Maximum Versatility

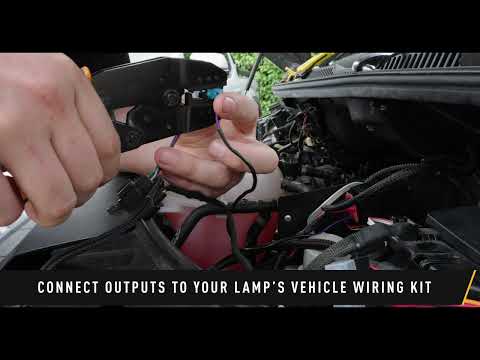

This system is not limited to high beams. The CANNY interface can activate up to 4 different exitsYou can program the control unit to detect various signals: high beams, position lights, reverse gear, or ignition switch. This offers incredible flexibility for your accessories. You can, for example, control rear work lights or ambient lighting. The system is compatible with all Lazer Lamps wiring kits (sold separately) that require a trigger signal.

3) Essential Information

• Marque : LAZER LAMPS
• Model : CANNY interface (Direct Connect version)
• Connection Type: Wired (Direct) with included harness.
• Waterproofing: IP68 certified dongle (Waterproof Molex connector).
• Facility : Engine bay or passenger compartment.
• Features: CAN signal detection (Hi/Lo).
• Exits: 4 programmable outputs (Headlights, Position, Reverse, Ignition).
• Connectivity: Bluetooth for updates and synchronization.
• Application : CANNY.LZR (iOS et Android).
• Compatibility: Works with standard Lazer Lamps beams.
• Included: CANNY dongle, wiring harness, cable ties.

Why do I need a CAN interface for my additional lights?

On newer vehicles, headlights are often controlled by digital signals (CAN bus) rather than a direct 12V supply. Therefore, it's impossible to tap into the headlight wire to trigger a conventional relay. The interface CANNY It reads this digital signal and converts it into a 12V signal usable to power your Lazer Lamps LED bars at the same time as your high beams.

How are the CANNY device updated?

One of the major advantages of the CANNY system is its connectivity BluetoothYou don't need any special cables or a computer. Just download the app. CANNY.LZR on your smartphone. The application connects to the device and allows for software (firmware) updates or changes to the vehicle's configuration instantly, without disassembly.

What is the difference between "Direct Connect" and "Contactless"?

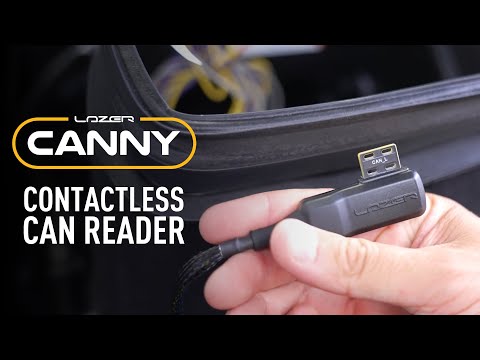

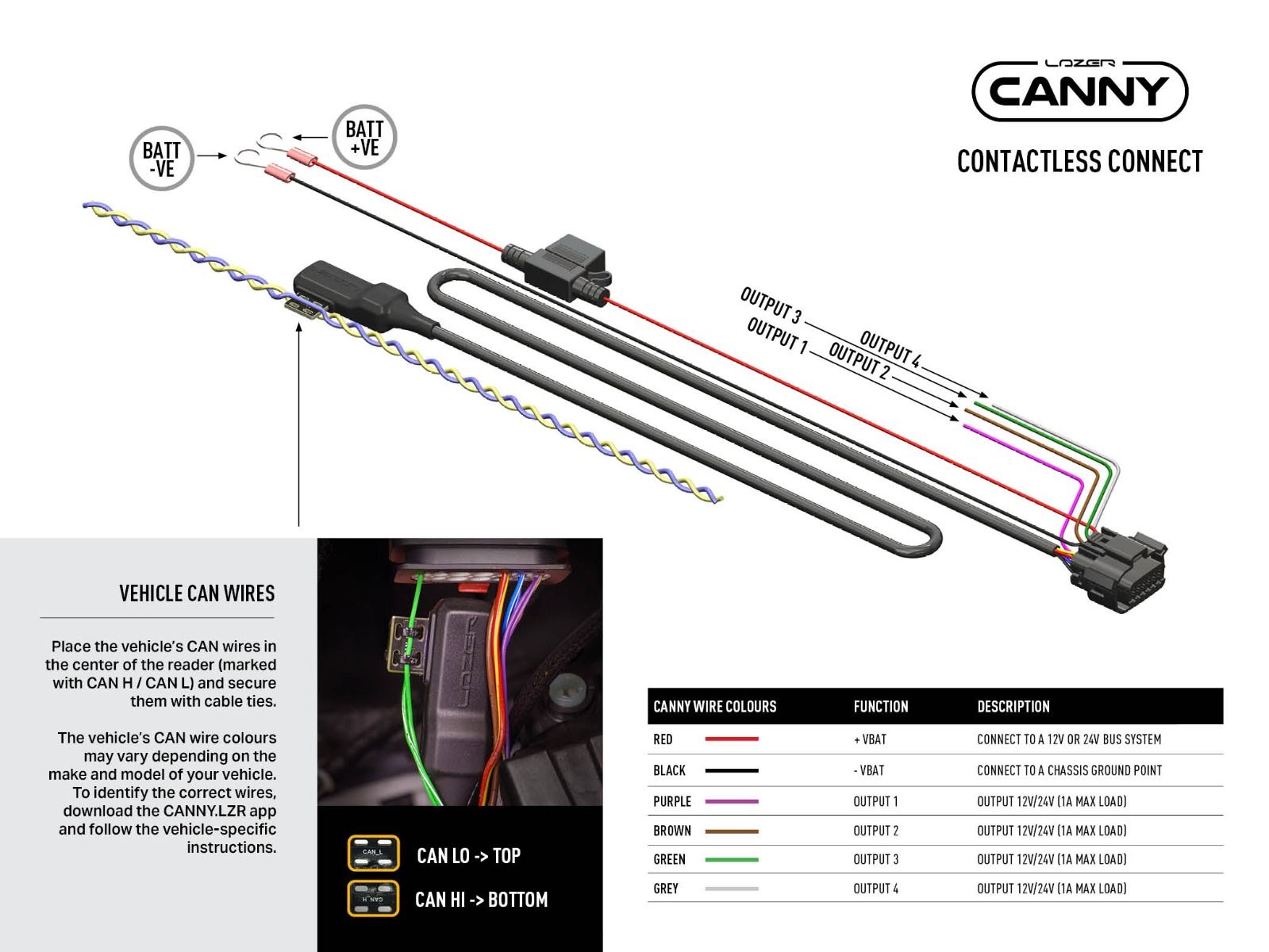

The version presented here is the Direct Connect. It requires a physical (wired) connection to the vehicle's CAN wires (Hi and Lo) using the supplied waterproof connectors. It's a very reliable method. The "Contactless" version (sold separately or as an option) uses an inductive reader that clips onto the wires without cutting or stripping them, thus avoiding any metal-to-metal contact with the original wiring harness.
